Technical Documentation

Public vs Internal

Opening

Presenter

Brian Dominick, DocOps Lab
docopslab.org
25 years software development experience
10 years tech-docs specialization

Presenter

Tech writer for BigData Engineering startup (2015-2018)
DocOps contractor since acquisition (2018-present)
Working on DocOps framework, utilities, libraries, and trainings/courses
Write the Docs participant since 2017

Audience

You are either a product developer or technical writer (or aspiring).
You are looking to initiate or improve the handling of internal documentation at some kind of engineering organization (or expect to).

Focus

Product is enterprise software
Subject-matter experts are developers and product managers
Product audience includes downstream developers and end users

Definitions

Jargon

Git	Leading (dominant) version-control system for flat-file tracking
API	Application programming interface
SDK	Software development kit
docs-as-code	Documentation authored using the same tools and processes as product code

Internal Roles

documentarian: Someone who contributes substantially to docs
TW: Technical writer
PM: Project or product manager
Support: Customer support technician or represntative

External (User) Roles

end user: Someone who uses the most-abstract interfaces of the product (mobile apps, web forms, even CLIs)
downstream dev: Or “dev user”, someone who uses the product’s APIs, SDKs, etc

External Docs

focus on interfaces
consumer is customer / client / prospect / user
includes downstream “dev docs”: API/SDK/etc

Internal Docs

also focus on interfaces
- including private APIs, etc
also cover resources
- assets, infrastructure, processes, styles
consumer is coworker / collaborator / successor / you
may be publicly accessible (open source)

Problems

Divergence and Convergence

Documentation of overlapping subjects is authored and output in different ways, using different tools.

Content divergence is an inevitable problem that can be solved with innovation.

Source duplication is a problem that can only be solved with manual effort (or elimintation).

Divergence Breakdown

contributor roles: developers, TWs, PMs
tech preferences: WYSIWYG, CCMS/XML, lightweight markup, Git, etc
audiences: end users, downstream devs, internal devs, etc
delivery methods: static site, wiki, PDF, etc

The Platform Divide

Internal	User/Dev Docs
Confluence	Markdown & GitHub Pages
Google Docs/Sheets	ReadTheDocs
Notion	OpenAPI/Markdown
SharePoint / Office 365	MadCap Flare / DITA

Internal

User/Dev Docs

Confluence

Markdown & GitHub Pages

Google Docs/Sheets

ReadTheDocs

Notion

OpenAPI/Markdown

SharePoint / Office 365

MadCap Flare / DITA

Duplication of Truth Sources

Source 1: The product source code.
Source 2: The documentation source code.

It matters not at all what is written in Confluence or Markdown or Flare if the source code does not agree.

(Ideal) Audience Breakdown

	Internal Docs	Public Docs
Internal Devs	Public & private APIs, SDKs, policies	N/A
Downstream Devs	N/A	Public APIs, SDKs, etc
End Users	N/A	Public UIs, tutorials, etc

Internal Docs

Public Docs

Internal Devs

Public & private APIs, SDKs, policies

N/A

Downstream Devs

N/A

Public APIs, SDKs, etc

End Users

N/A

Public UIs, tutorials, etc

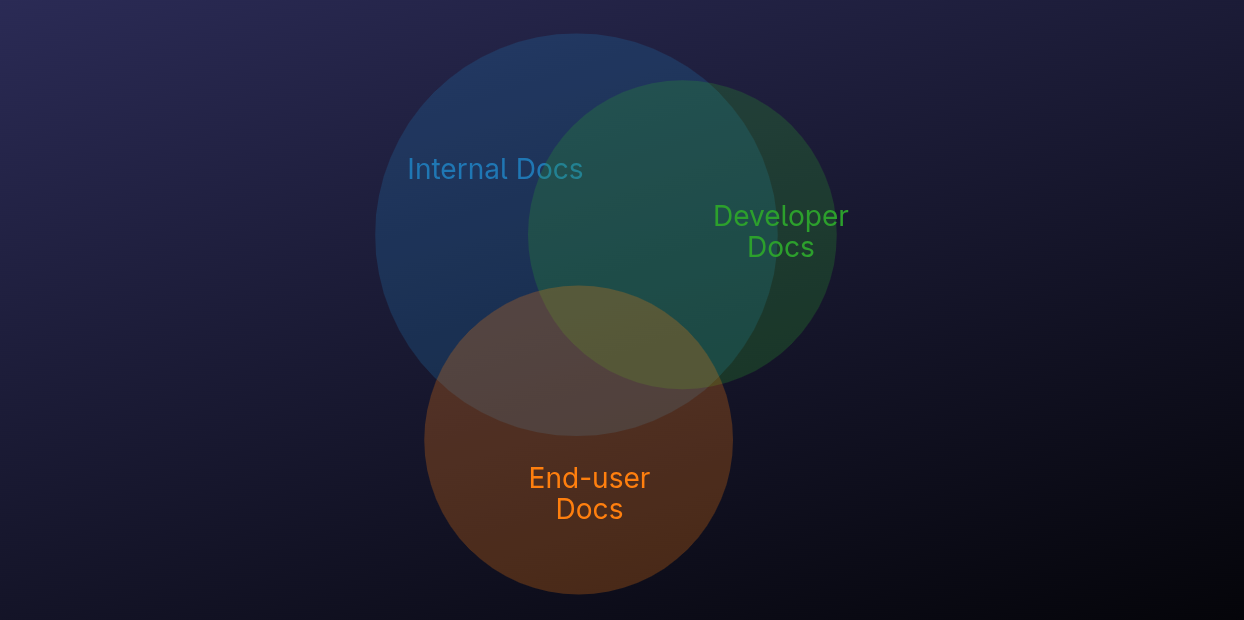

Docs Source Convergence

Content Complication Examples

private/public APIs: Same API might have 90% overlap, 10% private endpoints. Docs sourced in code or aside.
configuration: Config is defined internally, used by downstream devs and end users. Docs usually sourced aside.

Typical Implementation

2 API references: public on Mintlify or SwaggerHub, used by both internal and downstream devs, private in Confluence or Notion used by internal devs.
2-4 config guides: public on ReadTheDocs, premium for paid users in the WebUI, private versions of both on GitHub, used by devs and QA testers.

Key Differences

Internal Docs are:

more directly maintained by SMEs
fewer constraints on delivery methods/formats
not expected to be as “polished”
backed up by code (real source of truth)

Key Differences

External/User Docs are:

easy for users to discover and access
expected to be more polished and accurate

Risks of bad or missing docs

Audience	Potential Cost
customer	revenue loss
prospect	deal loss
coworker	frustration, cycles
open-source dev	code contributions

Audience

Potential Cost

customer

revenue loss

prospect

deal loss

coworker

frustration, cycles

open-source dev

code contributions

Solutions

Internal Documentation Principles

All docs are first-class docs.
Meet developers where they’re at (authoring and discovery).
Minimize the number of technologies.
Don’t repeat yourself (DRY).

All Docs are First Class

edited and architected by content professionals
delivered conveniently
accurate
polished

Meet Devs in Dev World

Use existing dev platforms
- JIRA/GitHub Issues
- Confluence/Wiki
- Docs-as-code via Git
- Commandline tools

Meet Devs in Dev World (Cont’d)

Deliver to accessible platform
- Could be Confluence
- Could be static site on company VPN
- Could be GitHub wiki or Notion

Keep the Toolchain Short

SSG or Wiki/CMS?
collaboration platform
runtime environments / Docker
linters
deployment platform

Keep the Language Stack Shorter

Content markup (Markdown, AsciiDoc*, rST)
Data markup (YAML*, JSON, CSV)
Template markup (Liquid*, Jinja2, Handlebars)
Scripting (Bash*, Python, Rust, Golang)

Write Once, Deliver Everywhere

DRY / Single Source of Truth (SSoT)
True single sourcing defines product and docs
Minimize "hand-offs" between SMEs & documentarians

Conditionalize Source

Generate multiple versions of the same document
- differ by audience role
- differ by delivery method
Use modular content
- if/else conditions
- transclusion of reusable content

Examples

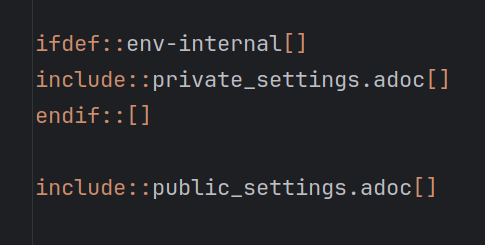

Example: AsciiDoc Conditonal & Transclusion

command

asciidoctor -a env-internal --out-file=docs.html docs.adoc

Example: YAML Truth Sourcing

properties:
  base_url:
    summary: The base path to the resource.
    default: /resource
  timeout:
    summary: The timeout for the request in seconds.
    default: 30
  retries:
    summary: The number of retries for the request.
    default: 3
    private: true

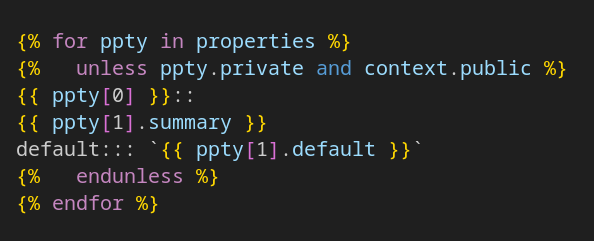

Example: Liquid Template

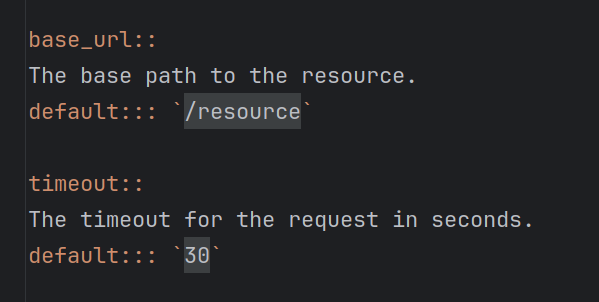

Example: Rendered AsciiDoc

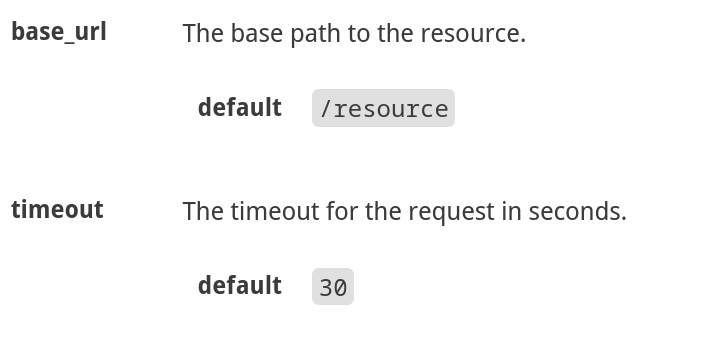

Example: Converted to
HTML or PDF

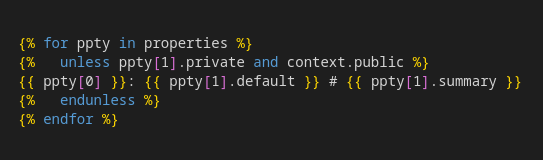

Example: Sample Config FIle

base_url: /resource # The base path to the resource.
timeout: 30 # The timeout for the request in seconds.

Example: YAML Loaded to Python

import yaml
with open('config.yaml', 'r') as file:
    config_file = yaml.safe_load(file)
class Config:
    def __init__(self, properties):
        self.properties = {k: Property(**v) for k, v in properties.items()}
class Property:
    def __init__(self, summary, default=None, private=None):
        self.summary = summary
        self.default = default
        self.private = private
config = Config(config_file['properties'])

Example: YAML Loaded to Rust

use serde::{Deserialize, Serialize};
use std::fs::File;
use std::io::BufReader;
#[derive(Debug, Deserialize, Serialize)]
struct Config {
    properties: std::collections::HashMap,
}
#[derive(Debug, Deserialize, Serialize)]
struct Property {
    summary: String,
    default: Option,
    private: Option,
}

Example: YAML Loaded to
Java

import com.fasterxml.jackson.databind.ObjectMapper;
import com.fasterxml.jackson.dataformat.yaml.YAMLFactory;
import java.io.File;
import java.util.Map;
public class ConfigLoader {
    public static void main(String[] args) throws Exception {
        ObjectMapper mapper = new ObjectMapper(new YAMLFactory());
        Map config = mapper.readValue(new File("config.yaml"), Map.class);
        System.out.println(config);
    }
}

Example: YAML Loaded to Ruby

require 'yaml'
config = YAML.load_file('config.yaml')
class Config
  attr_accessor :properties
  def initialize(properties)
    @properties = properties.transform_values { |v| OpenStruct.new(v) }
  end
end
config_obj = Config.new(config['properties'])

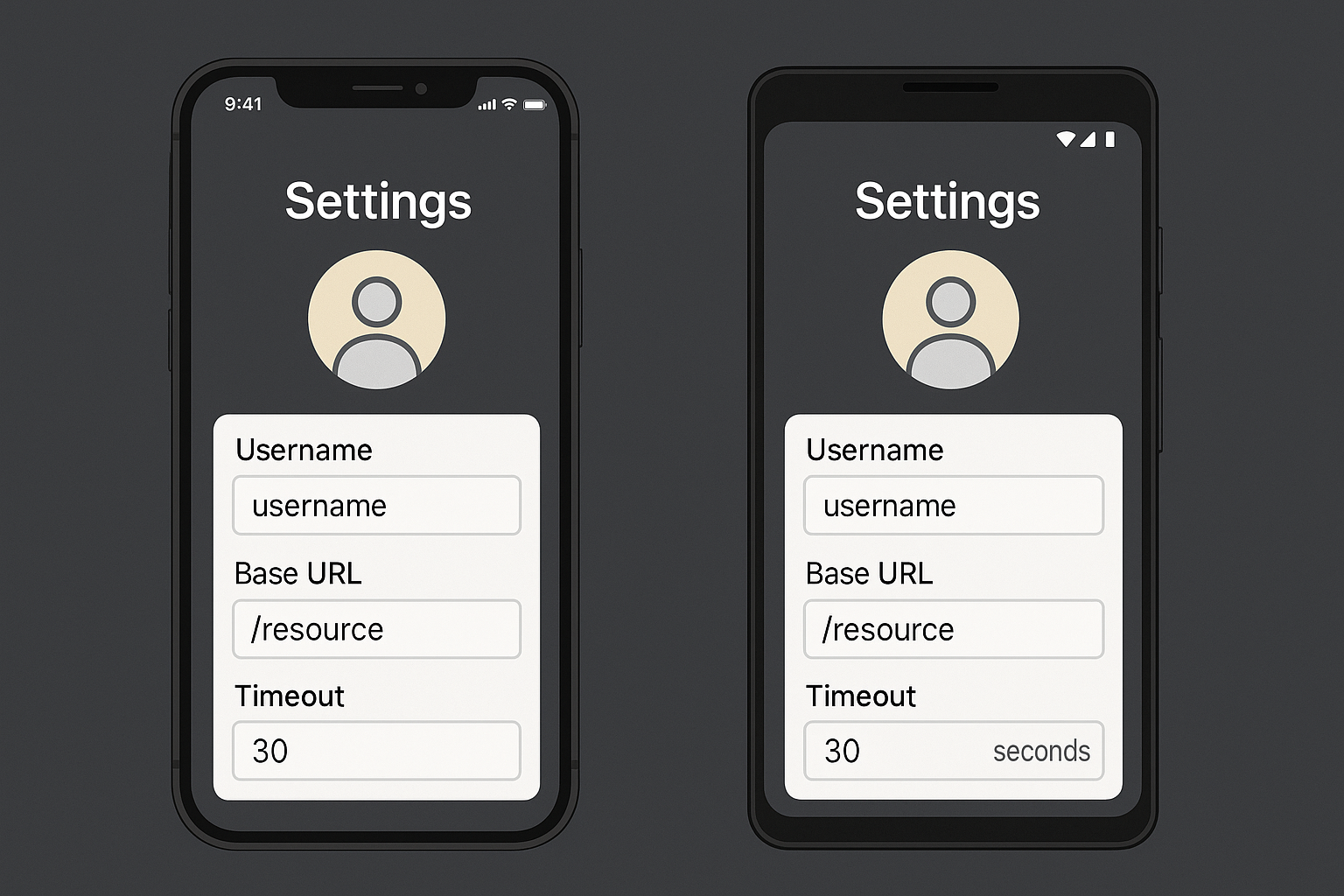

Example:
Mobile App Config Screens

Python Tests Based on YAML Defs

import unittest
config = Config(config_file['properties'])
class TestConfig(unittest.TestCase):
    def test_properties(self):
        for key, prop in self.config['properties'].items():
            with self.subTest(key=key):
                self.assertIn('summary', prop)
                if 'default' in prop:
                    self.assertIsInstance(prop['default'], str)
                if 'private' in prop:
                    self.assertIsInstance(prop['private'], bool)
if __name__ == '__main__':
    unittest.main()

Case Study:
Issue Tickets to Release Notes

Bridging the internal/external divide

Problem

Work tasks are tracked internally in Jira (or GitHub Issues, etc)
Release notes drafted in Confluence (or Google Doc, etc)
This is an extra burden at release-time
Release notes are often incomplete or inaccurate

Solution

Use a "Release Note" field in each qualifying Jira work item
Use a script to:
1. download the notes and
2. draft a Markdown file (via template)
Edit and save the file in Git

Example Script command

python release_notes.py --project acme-cloud --version 2.3.0

Example Jinja2 Template

## Release Notes for {{ project }} {{ version }}
{% for issue in issues %}
### {{ issue.summary }} ({{ issue.key }})
{% if issue.release_notes %}
{{ issue.release_notes }}
{% endif %}
{% endfor %}

Example Markdown Draft

## Release Notes for ACME-Cloud 2.3.0

### Fix login issue (CLOUD-453)

Some users were unable to log in to the ACME-Cloud platform.
The authentication service has been updated to resolve this issue.

### Improve performance of database queries (CLOUD-456)

### Add new API endpoint for image management (CLOUD-489)

This issue adds a new API endpoint (`/images`) for managing image assets in the ACME-Cloud platform. See [API Reference](/docs/api-reference/endpoints/images) for details.

Solution Achieves

Meets developers where they are
Uses existing tools (Jira, Git, Markdown, static site)
Reduces duplication of effort
Improves accuracy and completeness of release notes

Wrap-Up

Un-Covered Topics

Unified search
Documentation audits
Alignment with product versioning
Document lifecycle management

Further Exploration

Docs-as-code
REST APIs (Confluence, GitHub, etc)
Templating languages/engines
Conditional content
Structured / modular documentation

Resources

Slides: docopslab.org/slides/internal
Write the Docs Slack: https://www.writethedocs.org/slack (@BrianD)

Other Talks

Making Yourself Redundant on Day One
(WtD Australia 2018 Talk by Alexandra Perkins)

Sociological considerations in designing an internal documentation platform
(WtD Portland 2024 Talk by Alistair Gray)

Technical Documentation

Public vs Internal

Opening

Presenter

Presenter

Audience

Focus

Definitions

Jargon

Internal Roles

External (User) Roles

External Docs

Internal Docs

Problems

Divergence and Convergence

Divergence Breakdown

The Platform Divide

Duplication of Truth Sources

(Ideal) Audience Breakdown

Docs Source Convergence

Content Complication Examples

Typical Implementation

Key Differences

Key Differences

Risks of bad or missing docs

Solutions

Internal Documentation Principles

All Docs are First Class

Meet Devs in Dev World

Meet Devs in Dev World (Cont’d)

Keep the Toolchain Short

Keep the Language Stack Shorter

Write Once, Deliver Everywhere

Conditionalize Source

Examples

Example: AsciiDoc Conditonal & Transclusion

Example: YAML Truth Sourcing

Example: Liquid Template

Example: Rendered AsciiDoc

Example: Converted to HTML or PDF

Example: Sample Config FIle

Example: YAML Loaded to Python

Example: YAML Loaded to Rust

Example: YAML Loaded to Java

Example: YAML Loaded to Ruby

Example: Mobile App Config Screens

Python Tests Based on YAML Defs

Case Study: Issue Tickets to Release Notes

Problem

Solution

Example Script command

Example Jinja2 Template

Example Markdown Draft

Solution Achieves

Wrap-Up

Un-Covered Topics

Further Exploration

Resources

Other Talks

Questions?

Example: Converted to
HTML or PDF

Example: YAML Loaded to
Java

Example:
Mobile App Config Screens

Case Study:
Issue Tickets to Release Notes
